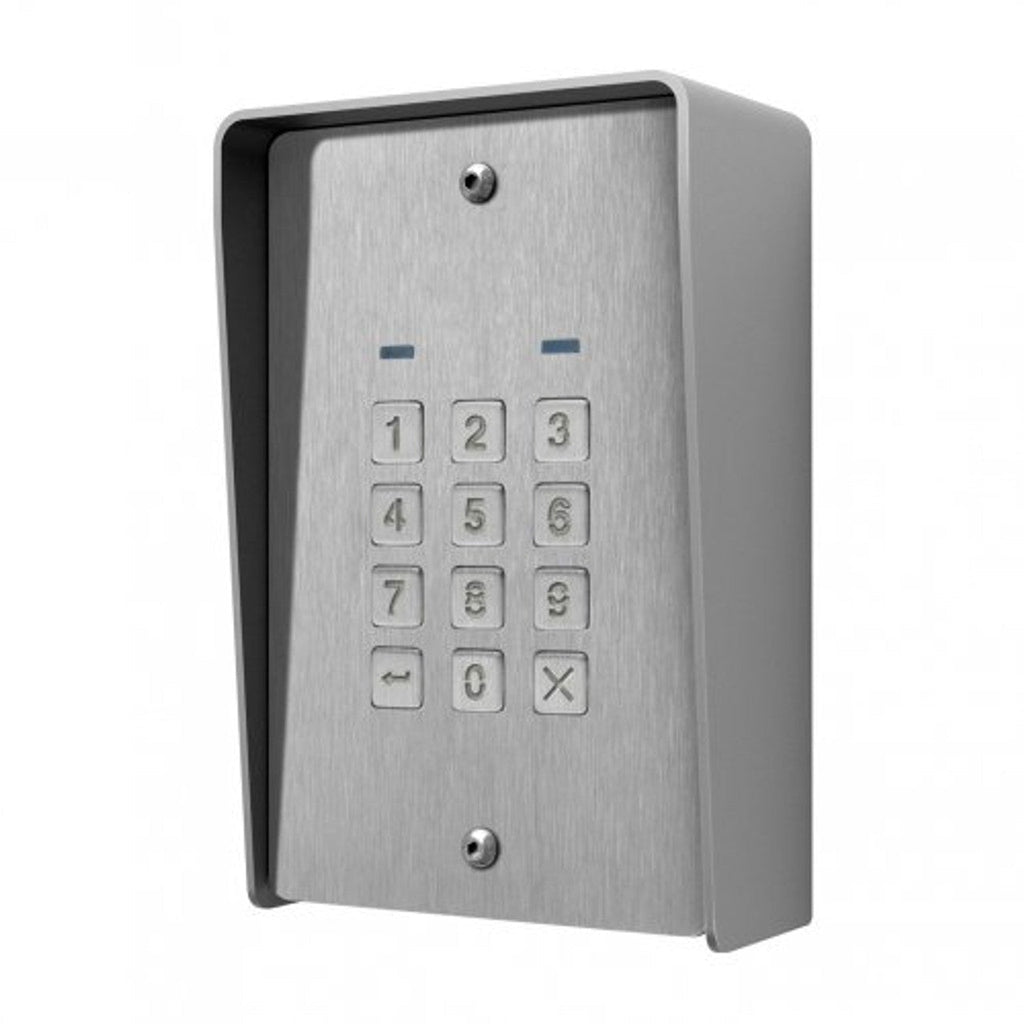

Description
Key Features Include:
• Surface or flush options available
• Vandal Resistant matt 316 grade stainless steel finish
• Easy to follow programming menus
• Visual and acoustic signalling during operation and programming
• Blue backlit keypad buttons with adjustable brightness control
• Programmable timed relay outputs or latching option
Technical Specification:
• Input Voltage: 12-24Vac/dc.
• Operating Current: up to 70mA (max.)
• Relay Contacts: 24Vac/dc at 3A
• Working Temperature: -10°C to +50°C
• 3 code/3 relays (8901) or 1000 codes/2 relays (8902) codelock options
• Programming codes between 4-8 digits in length
