Description

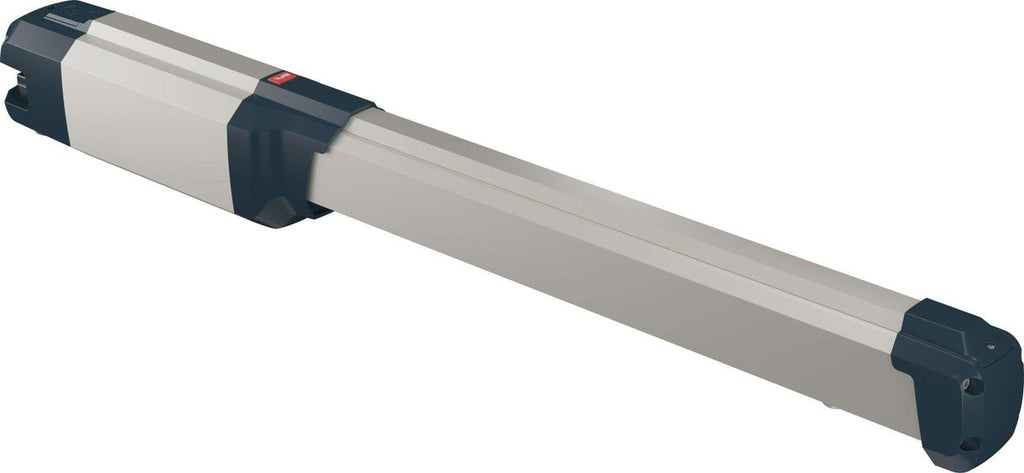

The PHOBOS BT B range holds two motors. The PHOBOS BT B25 and the PHOBOS BT B40 are both irreversible electromechanical 24V operators suitable for swing gate leaves up to 4m long and weighing up to 700kg.
Obstacle detection: the management and control system of the D-Track pair ensures maximum safety for people and property, as well as making it easier to certify the system. The installation is easy and fast thanks to the magnetic limit switch at the top of the motor and the exclusive function that helps the installer to position it correctly using the motor’s vibration.
Download our installation manual for further information.
| Phobos BT B25 |
Phobos BT B40 | |
| Power panel supply | 230v | 230v |
| Control unit | Thalia BT A80 | Thalia BT A80 |
| Operator Type | Electromechanical gates | Electromechanical gates |
| Max gate width | 2.50m | 4m |
| Max length gate panel without electric lock | 2m | 3m |
| Max gate weight | 400kg | 700kg |
| Motor voltage | 24v | 24v |
| Power consumption | 40w | 40w |
| Thrust and traction force | 2,000N | 2,000N |
| Shaft working stroke | 360mm | 470mm |
| Maximum angle | 119° | 130° |
| 90° opening time * | approx. 13s | approx. 16s |
| Limit swich type | Magnetic | Magnetic |
| Slowdown of movements | YES | YES |
| Impact reaction | D-Track | D-Track |
| Locking | Mechanical | Mechanical |
| Unlocking | Bespoke key | Bespoke key |
| Max opening cycles per hour | 30 | 30 |
| Environmental conditions | -20 - 55°C | -20 - 55°C |
| Protection rating | IP44 | IP44 |
* except deceleration, maximum gate and maximum weight.
