Description

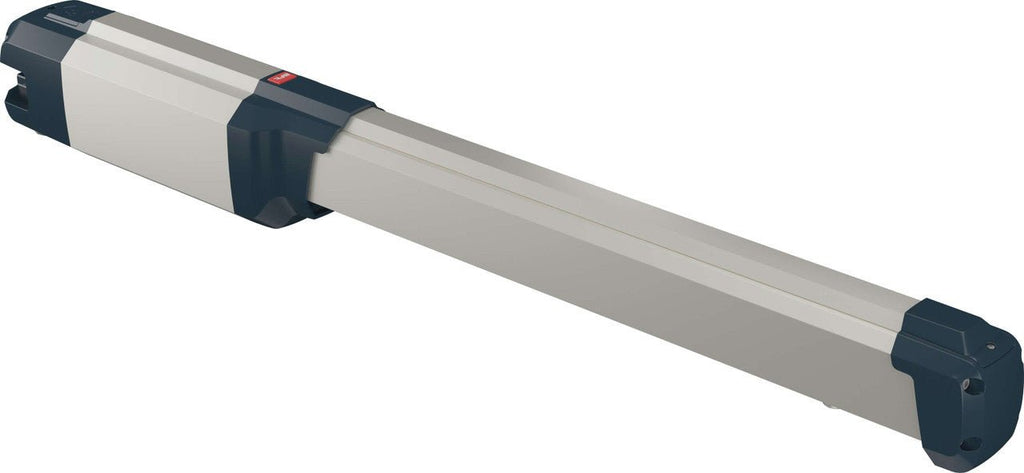

The PHOBOS AC B range holds two motors. The PHOBOS AC B25 and the PHOBOS AC B50 are both irreversible electromechanical 230V operators suitable for swing gate leaves up to 5m long and weighing up to 500kg.
Download our installation manual for further information.
| Phobos AC B25 |
Phobos AC B50 | |
| Power panel supply | 230v | 230v |
| Control unit | Rigel 6 | Rigel 6 |
| Operator Type | Electromechanical gates | Electromechanical gates |
| Max gate width | 2.5m | 5m |
| Max length gate panel without electric lock | 2m | 3m |
| Max gate weight | 400kg @ 2m, 250kg @ 2.5m | 500kg @ 2.5m, 250kg 3.5m |
| Motor voltage | 230v | 230v |
| Power consumption | 210w | 210w |
| Thrust and traction force | 2000n | 2000n |
| Shaft working stroke | 360mm | 470mm |
| Maximum angle | 119° | 130° |
| 90° opening time * | 18 sec | 22 sec |
| Operation | Work time | Work time |
| Slowdown | YES | YES |
| Impact reaction | Electronic clutch | Electronic cluth |
| Locking | Mechanical | Mechanical |
| Unlocking | Bespoke key | Bespoke key |
| Max opening cycles per hour | 15 | 15 |
| Environmental conditions | -20 - 55°C | -20 - 55°C |
| Protection rating | IP44 | IP44 |
* except deceleration, maximum gate and maximum weight.
