Description

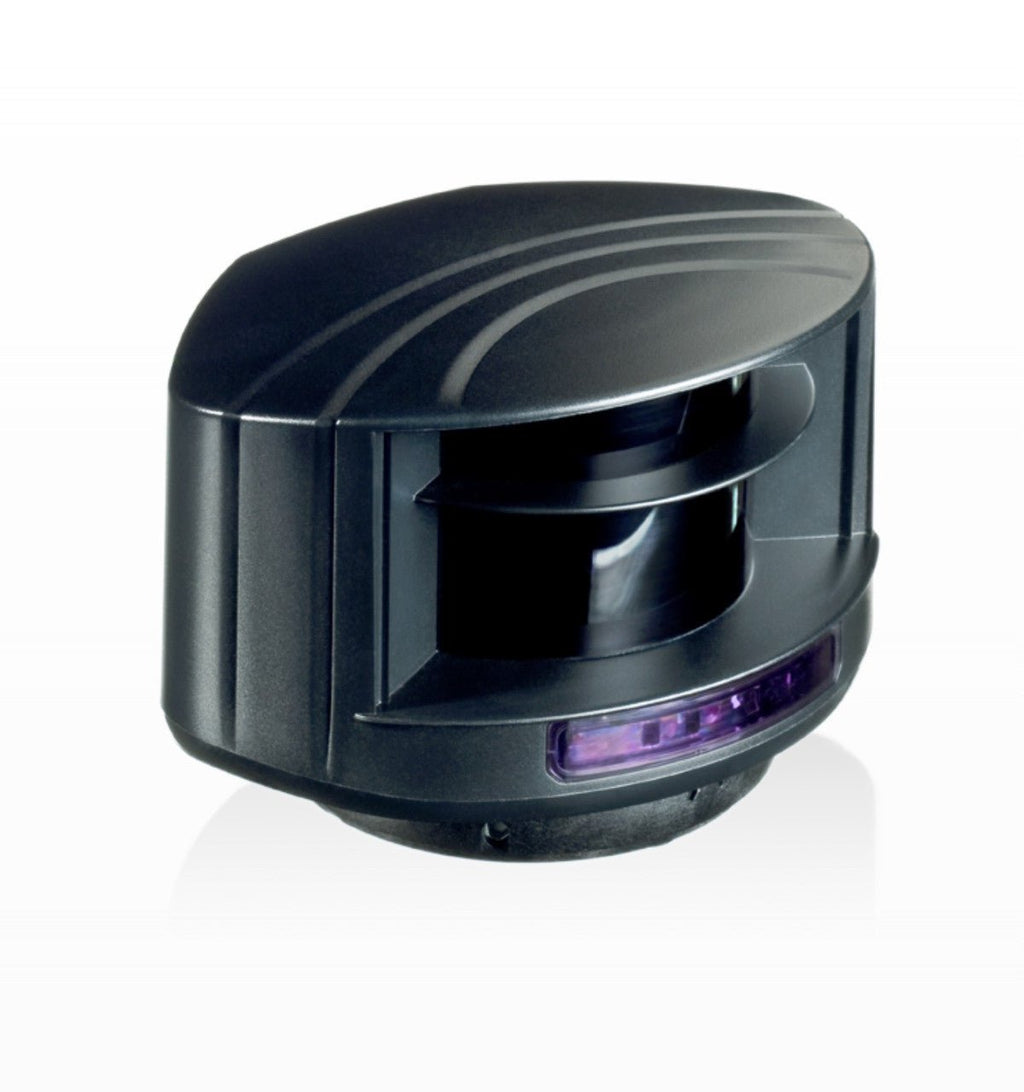

The LZR-H100 is a laser safety sensor for automated traffic barriers. They can provide an alternative to loop detectors. The laser has a maximum detection range of 9.9m x 9.9m providing a wide area of coverage, allowing vehicles to be detected easily.
| LZR H100 | |
| Technology | Laser scanner |
| Detection mode | Motion & Presence |
| Detection range | 9.9m x 9.9m |
| Emission specifications | IR laser: wavelength 905 nm; output power 0.10mW; Class 1 Visible laser: wavelength 635 nm; output power 0.95mW; Class 2 |
| Supply voltage | 10-35 V DC @ sensor side |
| Response time | Motion: typ. 200 ms (adjustable) Presence: typ. 20 ms; max. 80 ms |
| Dimensions | 125 mm (D) x 93 mm (W) x 70 mm (H) |
| Protection | IP65 |
