Description
230v hydraulic swing gate operators
The Lux range consists of six 230v hydraulic swing gate motors designed for very intensive use. All operators are suitable for almost any type of residential, industrial or multi-residence environment.

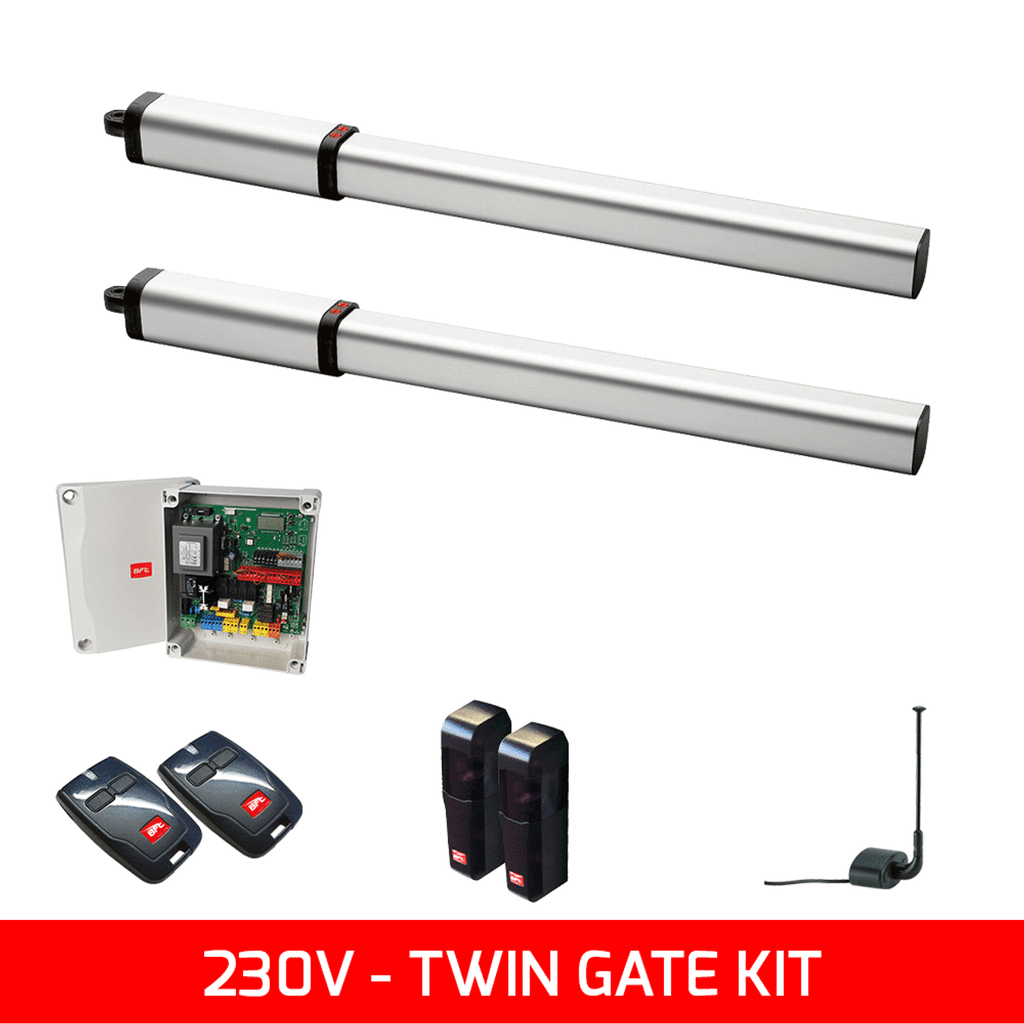

Included in the kit:
- 2x Lux operators
- 1x Rigel 6 control panel & receiver
- 2x Mitto radio transmitters
- 1x Pair of Compacta 180° photocells
- 1x Radio antenna
If you'd like to customise your kit, please call your local BFT office to place your order.
Download our installation manual for further information.
| Lux 2B | Lux R 2B | Lux FC 2B | Lux GV 2B | Lux GVS | Lux GVR | |
| Power supply | 230V | 230V | 230V | 230V | 230V | 230V |
| Gate leaf length |
2m |
2m |
2m |
3.5m |
3.5m |
3.5m |
| Max leaf weight | 300kg | 300kg | 300kg | 300kg | 300kg | 300kg |
| Locking type | self-locking | self-locking | self-locking | self-locking (up to 3m) | non-locking | non-locking |
| Control panel | Rigel 6 | Rigel 6 | Rigel 6 | Rigel 6 | Rigel 6 | Rigel 6 |
| Cycle time | 17 sec | 16 sec (+ slowdown) | 17 sec | 28 sec | 28 sec | 28 sec (slowdown) |
| Impact reaction | Hydraulic clutch | Hydraulic clutch | Hydraulic clutch | Hydraulic clutch | Hydraulic clutch | Hydraulic clutch |
| Frequency of use | Very intensive | Very intensive | Very intensive | Very intensive | Very intensive | Very intensive |
| Protection rating | IP57 | IP57 | IP57 | IP57 | IP57 | IP57 |
| Hydraulic locking | Yes | Yes | Yes | Yes | No | No |
| Slowdown | No | Yes | No | No | No | Yes |
| Internal stops | No | No | Yes | No | No | No |
