Description
24v hydraulic swing gate operator
The Giuno Ultra is a 24v hydraulic swing gate operator built for intensive use. There are two models available, the A20 and A50. The A20 model is suitable leafs up to 2 metres and up to 300kg and the A50 model is suitable for 5 metres* wide and up to 800kg*. This swing gate opener is suited to industrial and residential use as well as multi-resident sites.
This BFT swing gate opener also features built-in obstacle detection through the exclusive D-Track Torque management system.

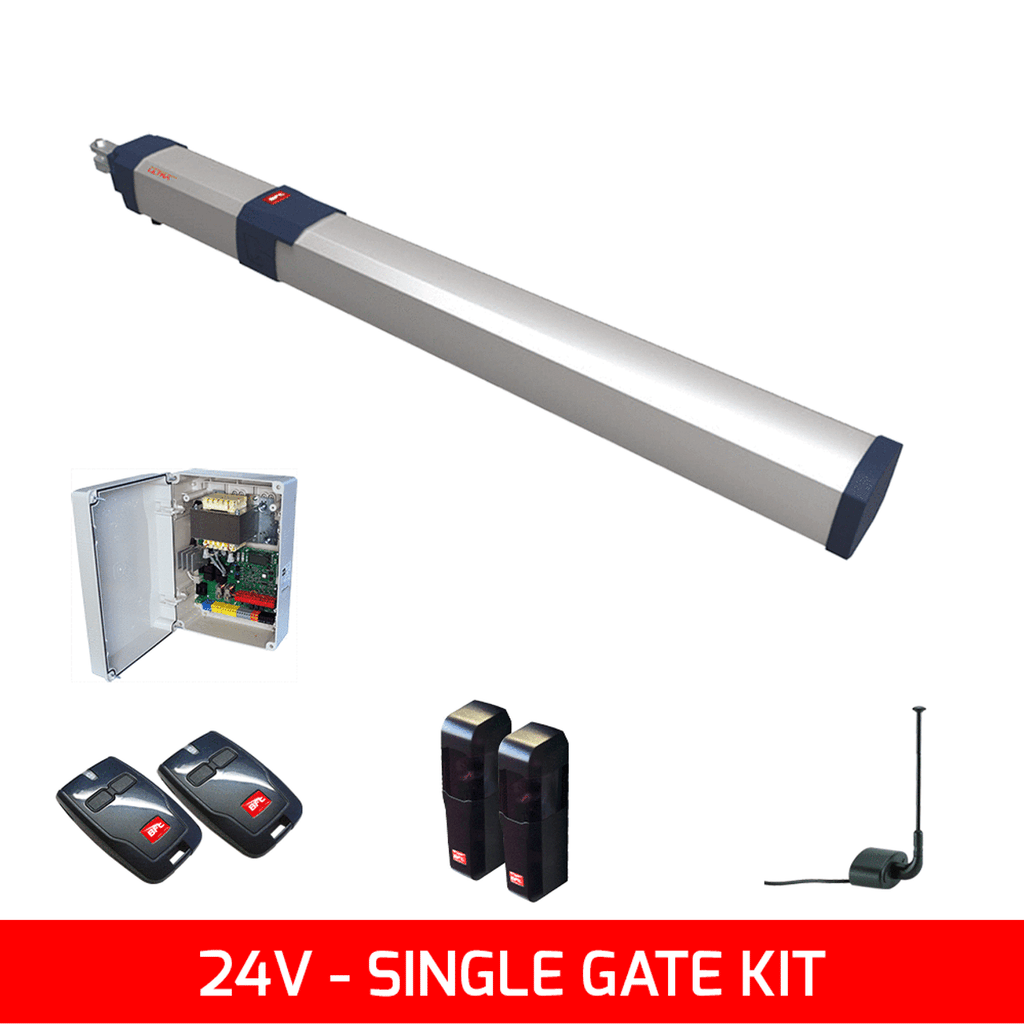

Included in the kit:
- 1x Giuno operator
- 1x Thalia control panel & receiver
- 2x Mitto radio transmitters
- 1x Pair of Compacta 180° photocells
- 1x Radio antenna
If you'd like to customise your kit, please call your local BFT office to place your order.
Download our Giuno Ultra installation manual for further information.
* Although the Giuno Ultra BT A50 supports a maximum leaf length of 5m and maximum gate weight of 800kg, please be aware that at 800kg, the maximum leaf length is 2m. On a 5m gate leaf, the maximum gate weight is 300kgs. Please refer to the instruction manual for more information.
| Giuno Ultra BT A20 | Giuno Ultra BT A50 | |
| Power supply | 24V | 24V |
| Gate leaf length |
2m |
2m (Max. weight 800kg) 5m (Max. weight 300kg) |
| Max leaf weight | 300kg | 800kg |
| Control panel | THALIA P | THALIA P |
| Cycle time | 14 sec | 20 sec |
| Impact reaction | D-Track | D-Track |
| Frequency of use | Very intensive | Very intensive |
| Protection rating | IP55 | IP55 |
