Description
Product Description

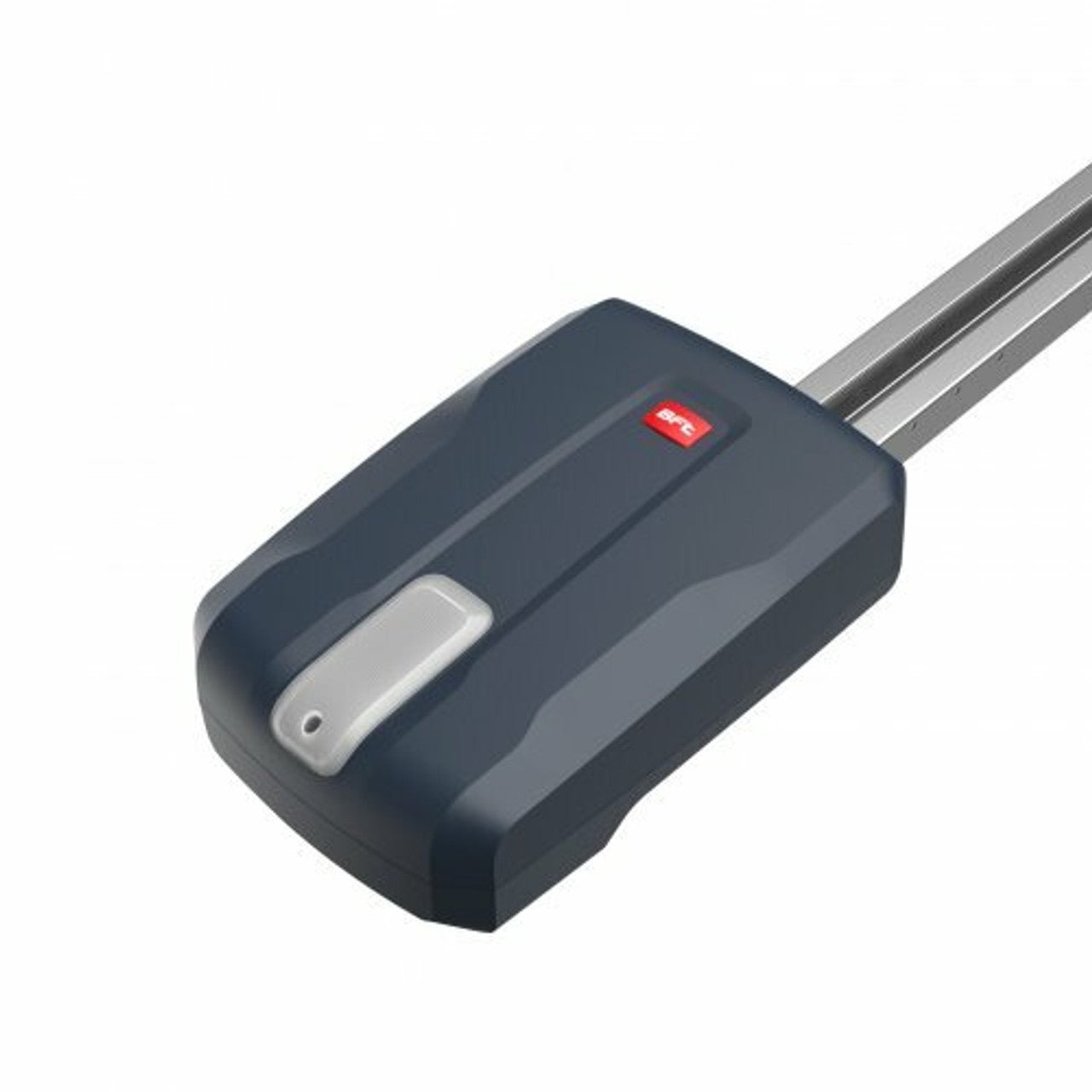

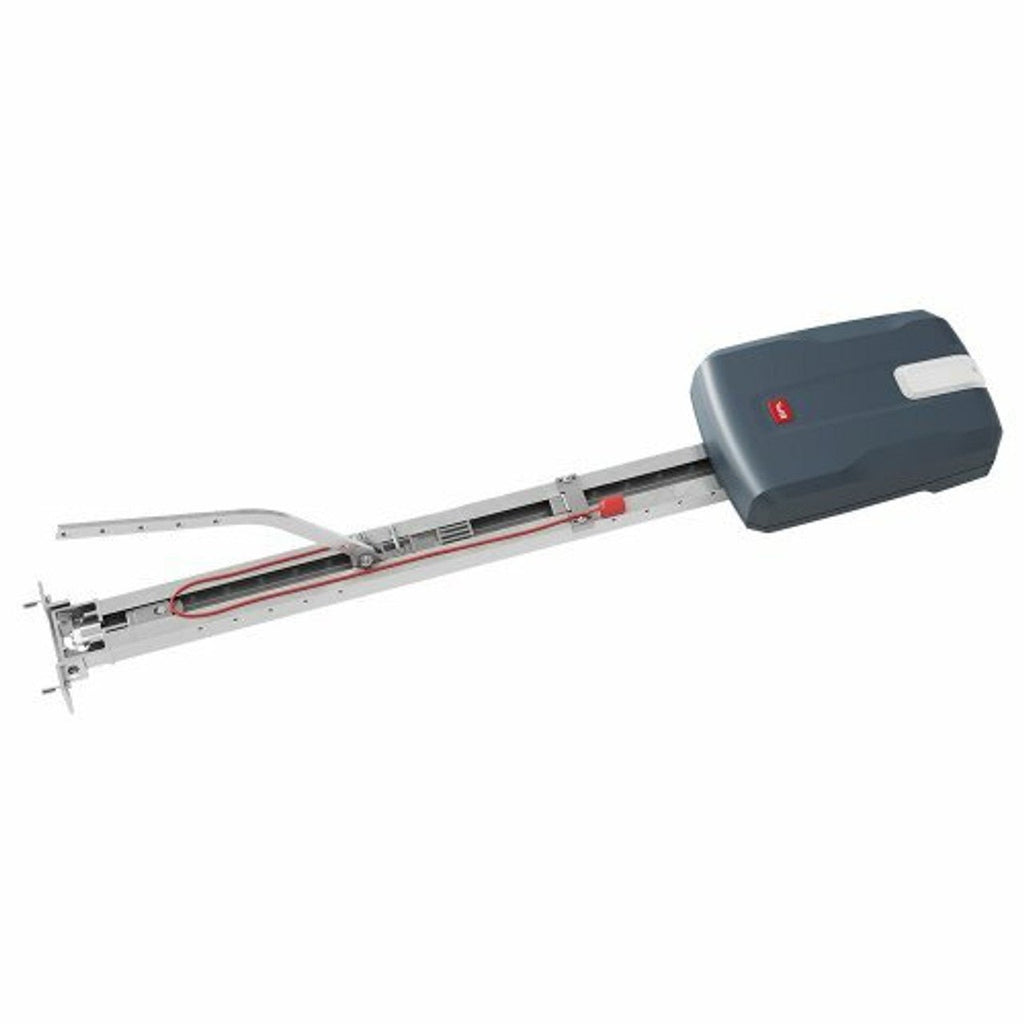

Botticelli Smart BT A is an electromechanical operator for intensive use. There are two models available, the A650 and A1250. The A650 model is suitable for doors with a surface area of 10m² and the A1250 model is for 16m² doors. The simplified mechanical installation typically requires only half the usual time for installation. Its compact design and faster motor means, the Botticelli Smart BT A is one of the leading products in this range.
Download our installation manual for further information.
| BOTTICELLI SMART BT A650 | BOTTICELLI SMART BT A1250 | |
| Voltage | 24v | 24v |
| Motor head weight | 5kg | 5kg |
| Door surface area | 10m² | 16m² |
| Tractive force & torque | 650N | 1250N |
| Control panel | Venere BT A ETD | Venere BT A DIS |
| Impact reaction | d-track | d-track |
| Frequency of use | Intensive | Intensive |
| Operating temperature | -20°C to 60°C | -20°C to 60°C |
| Protection rating | IP20 | IP20 |
